STAINLESS STEEL CONVEX TRAFFIC and SAFETY MIRRORS ROUND 160 DEGREE VIEW
BOTH THE INDOOR AND OUTDOOR USE MIRRORS ARE LISTED BELOW
MORE INFORMATION

5) STAINLESS STEEL MIRRORS -   - These mirrors have the 304 Polished Stainless Steel convex mirror lens. The mirror lens can be used anywhere. There is an Inside version with the Hardboard back and an Outside version, which has a Stainless Steel Back. The Inside, or indoor, models have a single centered wall mount where the 26" and larger Outside Use mirrors have the double mount configuration. (Click on the Illustrations on the bottom of the page for a view of the mounting. Stainless Steel can not be broken and will withstand scratching better than the acrylic mirrors. The reflective finish looks the same as the Acrylic or Glass. The mirror will, with enough force, dent. All the mirrors have the protective rim around the mirror. The options a person would consider are: 1)SIZE - Estimate how far from the mirror you will be when you are looking at it. Use the rule-of-thumb of 1" diameter for each foot you are from the mirror. For 26" and larger the "Grey Area" is around plus or minus 1/2 the diameter of the mirror times 1 foot. 2)Mounting - The inside use hardboard backed and the 14" and 20" Stainless Steel backed mirrors have the single centered mount. These are the easiest to install on flat walls, wooden posts, trees, etc. The Stainless Steel Backed mirrors from 26" and larger, have two(2) swivel mounts and are supported with two extension arms. TIP: Go to the bottom this page and click on the Illustrations showing mounting configurations for a better understanding of the double mount mirrors. The extension arms on the Double Mount mirrors are ideal for attaching to an over-hang, standing up from the top of a wall or extending out perpendicular to a wall. 3) Backing - The indoor use mirror has the standard brown hardboard back The Outdoor mirror has a Stainless Steel back.

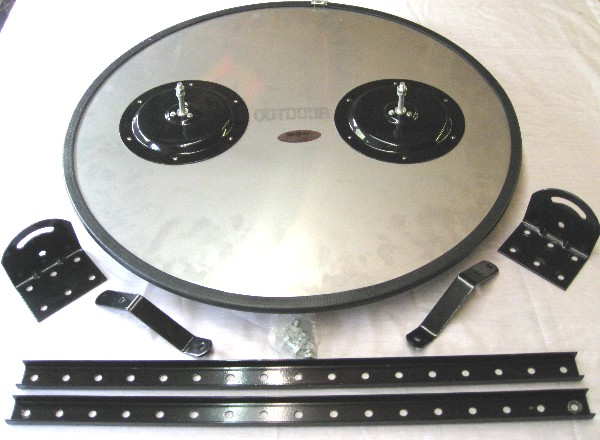

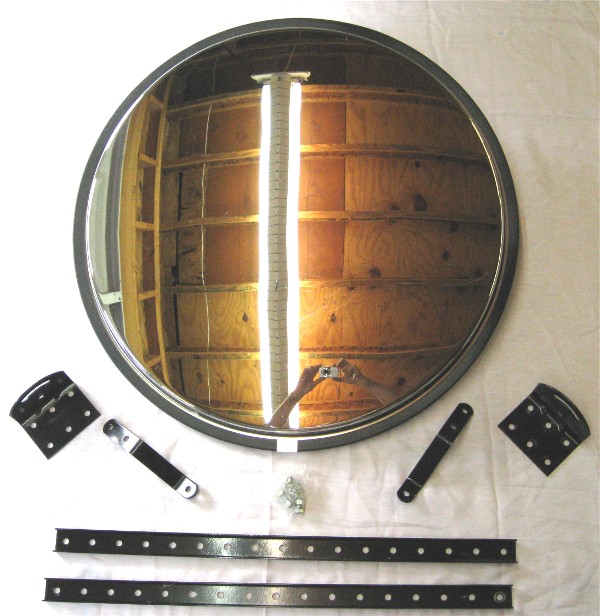

STAINLESS STEEL Convex Mirror Lens - indoor use with Hardboard back or outside with stainless steel back. 12 inch Convex Steel Back Mirror 12 inch Convex Steel Back Mirror Swivel Mount The 26, 34 and 42 inch mirrors have double mounting hardware as seen in this picture. The 14 and 20 inch mirrors will not have the extension arms and have single center wall mount bracket.  Pictured is the RSA-SSO34 (34" Steel Back) showing the double mounts.
---- STAINLESS STEEL MIRROR - INSIDE USE - HARDBOARD BACK ----
The Indoor Use hardboard back with a Black Vinyl TRIM-LOC RIM. This mirror has the single centered swivel mount and comes fully assembled with the wall bracket. This mirror is great for indoor applications where you want a mirror that can not be broken or may need to be cleaned with a strong chemical to remove paint or oils clecting onto the mirror. (Assembled in USA)
Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
Add to Cart
SA-SS14 14
  • $152.00
  • $144.00
  • $136.80
  • $129.00
SA-SS20 20
  • $229.00
  • $218.00
  • $206.10
  • $195.00
SA-SS26 26
  • $318.00
  • $302.00
  • $286.20
  • $270.00
SA-SS34 34
  • $451.00
  • $428.00
  • $405.90
  • $383.00
SA-SS42 42
  • $554.00
  • $526.00
  • $498.60
  • $471.00

---- STAINLESS STEEL MIRROR - OUTDOOR USE - STAINLESS STEEL BACK ----
STAINLESS STEEL MIRROR - OUTSIDE USE - STAINLESS STEEL BACK - Sizes 14" to 42" STAINLESS STEEL Convex Mirror with Stainless Steel Back for outside all weather use. Larger sizes have a double mounts for stability in windy and ice conditions. (Assembled in USA)
Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
Add to Cart
SA-SSO14 14
  • $236.00
  • $224.00
  • $212.40
  • $201.00
SA-SSO20 20
  • $271.00
  • $257.00
  • $243.90
  • $230.00
SA-SSO26 26
  • $354.00
  • $336.00
  • $318.60
  • $301.00
SA-SSO34 34
  • $451.00
  • $428.00
  • $405.90
  • $383.00
SA-SSO42 42
  • $554.00
  • $526.00
  • $498.60
  • $471.00

CUT SHEETS

Stainless Steel Round Convex

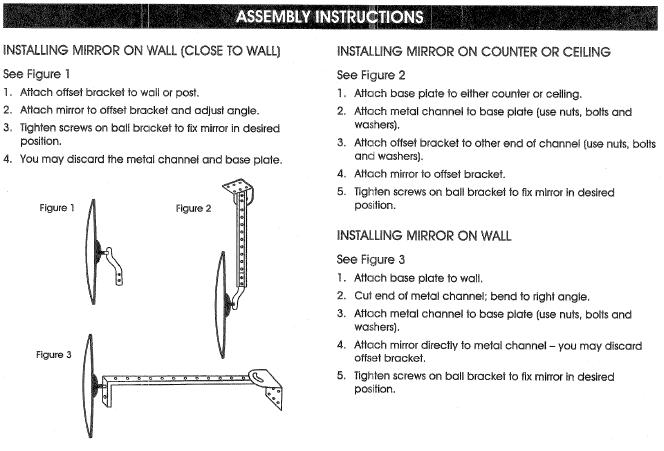

ASSEMBLY INSTRUCTIONS

WALL MOUNTING INSTRUCTIONS

GENERIC EXTENSION ARM MOUNTING INSTRUCTIONS

SA EXTENSION ARM MOUNTING INSTRUCTIONS

ILLUSTRATIONS

12 & 18" Mounting Illustrations

26" and larger Mounting Illustrations
