Inspection mirrors are an excellent tool for viewing the undersides of Vehicles, Machines, Trucks, School Buses, Construction or Industrial Equipment, or generally any hard-to-see areas. Used in airport security, police traffic inspections, auto emissions inspections, boarder patrol and military check points. Several styles and options are available from lightweight hand-held to units with wheels and a light.
Cut Sheets: Inspection Mirrors Inspection Mirrors
- Several Inspection Mirror Styles to Choose from
- 4x8" Lightweight (only 1 lb) 4"x8" rectangular convex glass mirror with an Aluminum 25' TO 49" adjustable length handle.
- 8" round convex acrylic mirror with a fixed length handle, no wheel or light option.
- 12" Mirrors available in Round Convex or Flat Mirror Lens and square lens
- Adjustable Length Handle
- Outside versions with Heavy Duty Extruded Rubber Rim to help Prevent Damaging Objects when Maneuvering
- Available with Tripod Ball-Bearing Caster Wheels, Allowing Full Range of Motion with Effortless Maneuvering or the two wheel version
- Low 3-1/2" Ground Clearance
- Available with Flashlight, Batteries, and Mounting Bracket on the models with a light
- For Indoor and Outdoor Use options
- Scroll down the page to see all of the options available

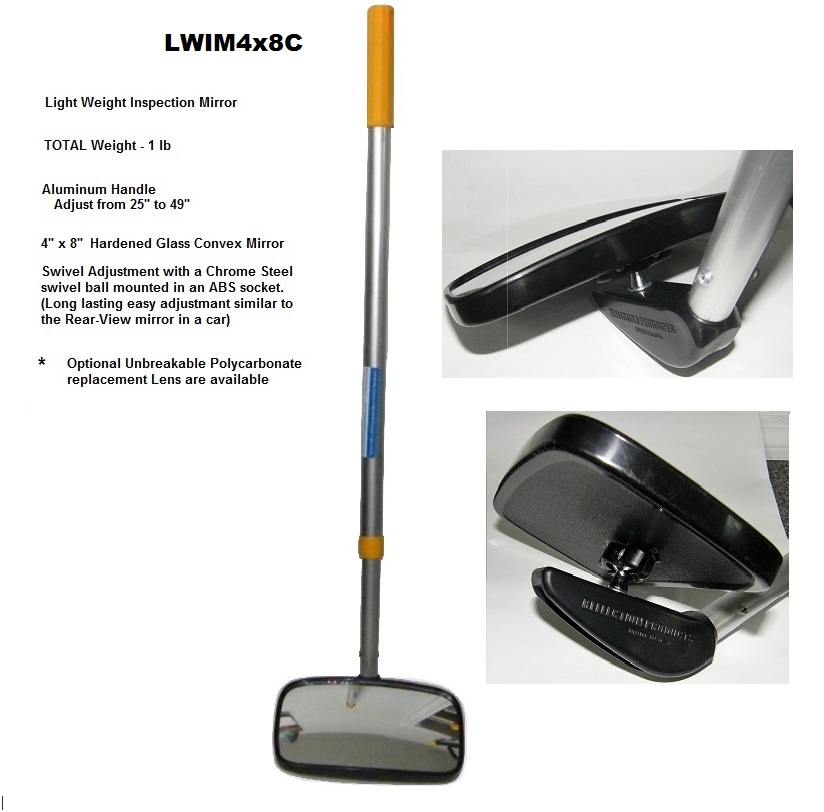

4"x8" Light Weight Inspection Mirror - Infinate Adjustment length aluminum handle from 25" to 49", 4x8 Glass Convex mirror mounted in an ABS housing with a chrome steel swivel ball mounted in an ABS socket for easy and long-lasting adjustment. Overall weight is only 1 pound.
| Item Code | Size |
Price Each
|
Add to Cart |
| RP-LWIM4x8C | 4 x 8 |
|
Replacement Parts: 1)RP-LWIM4x8MH - Mirror housing with a convex Glass Lens. 2)RP-LWIM4x8PL - Unbreakable Polycarbonate Lens replacements (Packs of 5 lens). 3)RP-LWIM4x8HNDL - Handle assembly with mirror attachment base.
| Item Code | Size |
Price Each
|
Add to Cart |
| RP-LWIM4x8MH | 4 x 8 |
|
|
| RP-LWIM4x8HNDL | 24-49 |
|

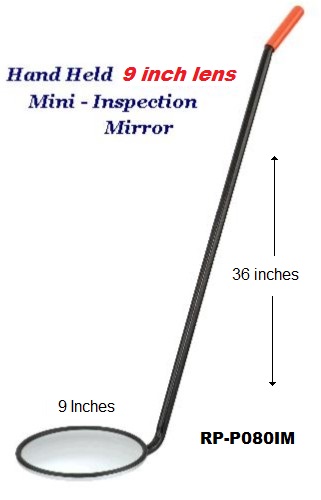

Hand Held - 9" Convex Acrylic Lens Under Vehicle Inspection Mirror - 36" Handle
| Item Code | Size |
Price Each
|
Add to Cart |
| RP-P080IM | 9 |
|

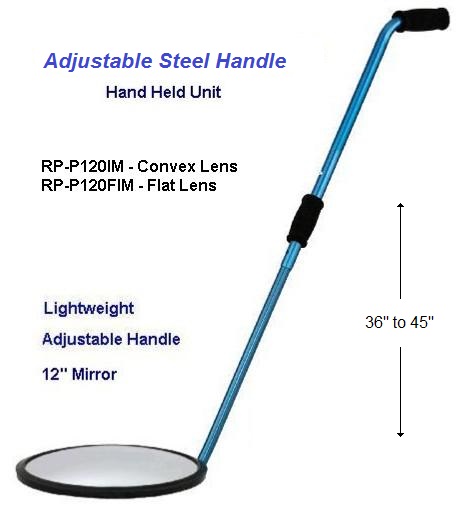

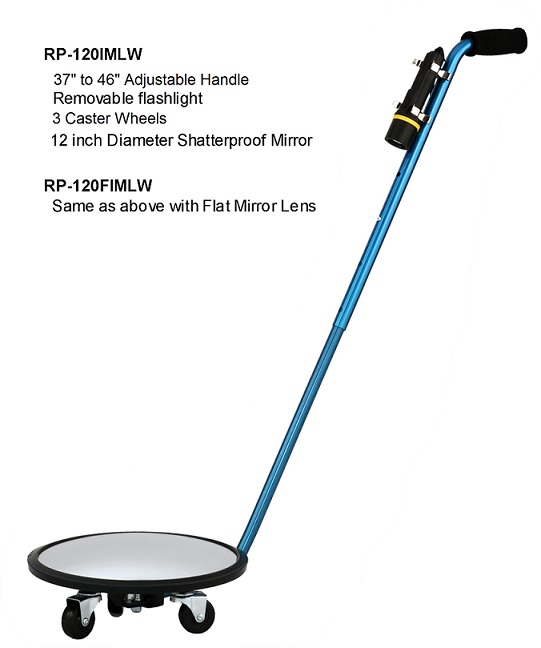

12" Inspection Mirror - adjustable iodized steel handle - Optional Light, wheels and convex or flat lens
| Item Code | Size |
Price Each
|
Add to Cart |
| RP-P120IM | 12 |
|
|
| RP-P120IMW | 12 |
|
|
| RP-P120IMLW | 12 |
|
The Truck and Rail Inspection mirrors are specially designed to inspect the tops of truck trailers and railroad cars. The handle is infinitely adjustable from 4 1/2 feet to 13 1/2 feet. The 12 inch round (Convex or Flat) mirror is attached to the handle by a strong aluminum bent tube which is detachable. Uses are for the inspection of Machines, Trucks, School Buses, Construction and Industrial Equipment, or generally any hard-to-see areas. Used in truck inspections, airport security, police boarder inspections, military check points and railroad car inspections.
Overhead Inspection Mirror - with adjustable aluminum handle - Optional convex or flat lens
| Item Code | Size |
Price Each
|
Add to Cart |
| RP-P120TIM | 12 |
|
|
| RP-P120FTIM | 12 |
|
These sturdy mirrors make it easy to inspect underneath equipment. Look under machinery and vehicles without getting down on the ground.
Types of Mirror:
- Convex mirror gives a wide angle view to scan large areas quickly.
- Flat mirror gives a more precise view and accurate depth perception.
Model Durability:
- Standard model mirror is great for indoor use while durable.
- Deluxe model mirror is heavy duty and can be used indoors or out.
- The difference between the Standard and Delux models are:
- The Standard (SUC) models are made for Indoor Use with NO LIGHT.
- The Deluxe (DUC) models are for outdoor use and the Light is included. The mirror has an ABS back and the Rubber Bumper Rim around the mirror.
Additional Specifications:
- Handles adjusts from 30" to 50" (All models)
- Wheels for effortless maneuvering (All models)
- includes a flashlight (Deluxe model only)
STANDARD and DELUXE MODELS - SQUARE INSPECTION MIRRORS - More Detail but less viewing area. Wheels included but not shown.
| Item Code | Size |
Price Each
|
Add to Cart |
| SA-SUC-1212F | 12 |
|
|
| SA-SUC-1212F-PLEXI | 12 |
|
|
| SA-DUC-1212F | 12 |
|
STANDARD and DELUXE MODEL - CIRCULAR INSPECTION MIRROR - Deluxe inspection mirror for heavy duty and outdoor use. The Deluxe model includes a flashlight, outdoor ABS backed mirror with a bumper rim. Wheels are included on both models.
| Item Code | Size |
Price Each
|
Add to Cart |
| SA-SUC-12C | 12 |
|
|
| SA-DUC-12C | 12 |
|
Handheld Security Inspection Mirror - Adjustable length Handle
Perfect For: Trucks, Cars, Auditoriums, Stadiums, Hospitals, Airplane Cabins, Churches, Movie Theaters, Offices, Nightclubs, Train Stations And Restaurants.
Specifications:
- Slip Resistant PVC Finger Grip Handle.
- Chrome Arm, Which Adjusts From 25" To 30".
- Glass Or Acrylic Convex Mirror With A Metal Backer And Ball Swivel Mount.
| Item Code | Size |
Price Each
|
Add to Cart |
| SA-SUC-6C | 6 |
|
|
| SA-SUC-8C | 8 |
|
|
| SA-SUC-PLX8 | 8" |
|
- Item Total: $0.00
|
Questions, help, or order by phone: (770) 642-2104 8:30 to 5:30 M-F EST Fax questions or quote requests to (770) 642-8246. Please include a return phone number and City/Zip for shipping calculations. **** Quantity Discounts Available **** |
|
