360° Dome Safety Mirrors
Full Dome Mirrors
180° Flat Wall Mirror
Use 360° mirrors at four-way intersections
  • Blind Corners
  • Aisles and Corridors
  • Showroom and Store Surveillance
  • Best all Around Full View
  • Accident Prevention
  • Store Theft Prevention
  • Available in Acrylic or Steel.
  • Only steel domes should be used outdoors.
  • Use the Steel Backed for applications where porous surfaces are prohibited.
  • Fully assembled with mounting bracket
  • Shatterproof (acrylic)

Inches to Centimeters Conversion Calculator

PRINTABLE PRODUCT CUT SHEET MODELS: RAVxxx

PRINTABLE PRODUCT CUT SHEET MODELS: ALHxxxxxx

PRINTABLE DOME INFORMATION

CLICK HERE FOR HELP WITH BEST SIZE AND STYLE

DOME LENS: Full dome mirrors are the same as if you were to cut a ball or sphere in half with a 1/2" to 1- 1/4" flange around the edge depending on the size and style of dome. There are slight variations in the round (convex) shape but generally they are the same. The model ALH... domes are slightly less than 1/2 the diameter where the model RAV... domes are closer to 1/2 the diameter. For Example: An RAV26F will be 26" wide with a 3/4" flange making the actual width 27 1/2" with a depth of 13". The ALH143265 26" dome has the same overall width but the depth is around 12 1/2".

Full Dome Backing
a) Lens Only
No Backing - Less rigidity - Easy Flange Mount With Screws - For inside use only.
b) Hard-Board
Masonite Hardboard - More Ridged assembly with chain or wire loop brackets for hanging from a high ceiling.
c) Galvanized Steel
Non-porous surface for high interior humidity applications. Wire or chain brackets like for hanging from a high ceiling.

Full Dome Mounts
1) Flange Mount
Attached directly to the ceiling with screws through holes in the flange (Screws not included).
2) Chain/Wire Bracket Mount
The full domes, with backing (Hardboard or Glv Stl), come with Loops on back that can attached to a chain or wire to suspend the mirror.
3) Chain Mount Attached to the Flange
The full domes with the chain mounting hardware included, have holes in the flange where the mounting hardware attaches to the mirror. These mirrors are also a good option if you want the finished look of the black rim but need to use screws to fasten the mirror directly to a ceiling.

Click here if you need help deciding which mirror to purchase? - Dome Safety Mirrors

1) Inside Use Only - Light Weight - NO Black Rubber Rim - Flange Mount Holes

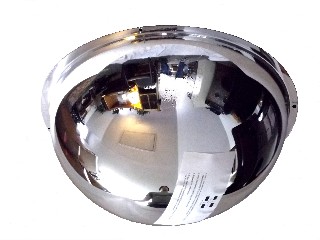

The picture on the right is of the no back full dome flange mounted mirror. This mirror is fastened to a wall through the 4 holes around the flange. Front of installed full dome NOTE: You MUST CALL to order the 48" sizes. The reason is: 48" Full Dome mirrors are to large to ship via a common carrier and our web site does not provide truck freight costs.
---- Flange Mounted Acrylic 360 degree view Full Dome Mirror ----
The flange mounted domes have no rim boarder around the flange, are light and are easy to install. The lens is shatterproof acrylic with excellent reflective properties. This mirror is a good choice where there is a flat surface where the mirror can easily be attached with screws. The mirror can be attached directly to a ceiling. (MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
RP-AV12FL 12
  • $59.00
  • $56.00
  • $53.10
  • $50.00
RP-AV18FL 18
  • $103.00
  • $98.00
  • $92.70
  • $88.00
RP-AV26FL 26
  • $161.00
  • $153.00
  • $144.90
  • $137.00
RP-AV32FL 32
  • $227.00
  • $216.00
  • $204.30
  • $193.00
RP-AV36FL 36
  • $281.00
  • $267.00
  • $252.90
  • $239.00
2) Inside Use Only - UNBREAKABLE POLYCARBONATE - Light weight - High Impact Resistant Polycarbonate - No Back - No Trim - Wire hanging bracket or Flange Mount
The picture on the right is of the Full Dome Polycarbonate mirror. This mirror is attached to a chain or wire using the wire frame that attaches to the back of the mirror. Front view of polycarbonate full dome.
---- Unbreakable POLYCARBONATE, 360 DEGREE VIEW, Full Dome Mirror ----
The Polycarbonate Full Dome is highly impact resistant with excellent reflective properties. There is no rim around the lens or back plate which allows the mirror to be lightweight. The lens is held with a wire frame, which attaches over the back around flange. Wires or chains can be then attached to the wire frame. Excellent for use inside a warehouse at the end of storage rack isles. Used to help forklift drivers see traffic around intersecting isles. The lens is very close to unbreakable with excellent reflective properties. (Assembled and Distributed IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
SA-LX18-360
  • $0.00
SA-LX26-360
  • $0.00
SA-LX32-360
  • $0.00
SA-LX36-360
  • $0.00
3) Inside Use - Pendent (Hanging) Dome Mirrors - No Back - Chain Mount (Chain Included) with a Black textured rubber rim
The picture on the right is of the AL-H143265 18" Hanging Dome Mirror. The chain is included with the mirror. View of a pendant full dome mirror
---- Pendent (Hanging) Acrylic 360 degree view full dome mirror ----
Indoor Use - No Back - Chain Mount included - Black textured rubber rim. The Pendant mounted domes are light and have the black rim, which provides a professional finished look to the mirror. The mirror flange has three holes where the chain "S" hooks are attached. The holes may also be used to fasten the mirror directly to a ceiling using screws rather then using the chain. The lens is shatterproof acrylic with excellent reflective properties. This mirror is a good choice where there is a flat surface where the mirror can easily be attached with screws or hanging from the included chain assembly. (MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
AL-H143185 18
  • $66.00
  • $63.00
  • $59.40
  • $56.00
AL-H143245 24
  • $80.50
  • $76.00
  • $72.50
  • $68.00
AL-H143265 26
  • $104.00
  • $99.00
  • $93.60
  • $88.00
AL-H143305 30
  • $123.50
  • $117.00
  • $111.20
  • $105.00
AL-H143365 36
  • $144.00
  • $137.00
  • $129.60
  • $122.00
AL-H143485 48
  • $0.00
4) Inside Use Only - Heavy Duty Enclosed Hardboard Back with a Black Extruded Rubber Rim - For Chain or Wire Mounting - The hooks for the hanging chains (or wire) are on the back, Chain Not Included.

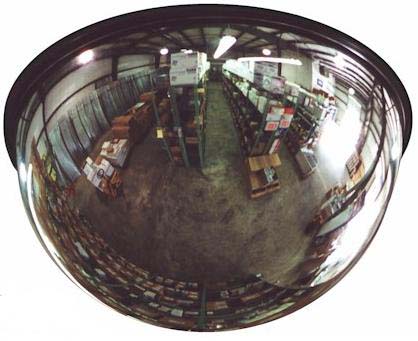

The picture on the right is a view of the enclosed "Hardboard"-Back, full dome mirror with a 360° View Angle. Font of hardboard backed full dome NOTE: You MUST CALL to order the 48" sizes. The reason is: 48" Full Dome mirrors are to large to ship via a common carrier and our web site does not provide truck freight costs.
---- Hardboard Back - "D" Loop Hanging Mounts - Acrylic 360 degree view Full Dome Mirror ----
The Hardboard backed full dome mirrors are built solid with an Extruded Rubber rim holding the back to the dome lens. There are 4 "D" Loop attachments for wire or chain mounting. The backing prevents birds from nesting inside the dome and adds weight to resist wind currents from causing the domes to easily be swing around. Excellent inside a warehouse for use at the end of storage rack isles. Used to help forklift drivers see traffic around intersecting isles. The hardboard back in not waterproof so consider using the Steel Backed mirrors if there is a possibility of water falling down onto the dome. The lens is shatterproof acrylic with excellent reflective properties. (MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
RP-AV12F 12
  • $75.00
  • $71.00
  • $67.50
  • $64.00
RP-AV18F 18
  • $121.00
  • $115.00
  • $108.90
  • $103.00
RP-AV26F 26
  • $179.00
  • $170.00
  • $161.10
  • $152.00
RP-AV32F 32
  • $253.00
  • $240.00
  • $227.70
  • $215.00
RP-AV36F 36
  • $329.00
  • $313.00
  • $296.10
  • $280.00
5) Inside/Outside Use - Galvanized Steel SEALED Back - Black Extruded Rubber Rim - "D" Loop brackets for hanging
The picture on the right is the Front of the full dome Front of installed full dome TOP VIEW showing the chain mounting brackets. Top view of steel backing and chain mounting brackets.
---- Galvanized Steel Back, "D" Loop Hanging Mounts, Acrylic 360 degree view Full Dome Mirror ----
The Galvanized Steel backed full dome mirrors are built solid with an Extruded Rubber rim holding the back to the dome lens. There are 4 "D" Loop attachments for wire or chain mounting. The backing prevents birds from nesting inside the dome and adds weight to resist wind currents from causing the domes to easily be swing around. Excellent inside a warehouse for use at the end of storage rack isles. Used to help forklift drivers see traffic around intersecting isles. The lens is shatterproof acrylic with excellent reflective properties. (MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
RP-AV18FS 18
  • $379.00
  • $360.00
  • $341.10
  • $322.00
RP-AV26FS 26
  • $216.00
  • $205.00
  • $194.40
  • $184.00
RP-AV32FS 32
  • $307.00
  • $292.00
  • $276.30
  • $261.00
RP-AV36FS 36
  • $379.00
  • $360.00
  • $341.10
  • $322.00
6) Inside/Outside Use - Solid Steel - Polished and Chrome Plated - Flange Mount Holes
The picture on the right is of the Steel Full Dome Mirror. This mirror is fastened using holes around the flange. Steel Full Dome Mirror
---- Polished Steel 180 degree view full dome Flange Mounted Mirror ----
The Polished steel domes were made for high temperature environments. They are mounted with screws through the holes in the flange. There is no rubber rim or any part of the mirror that will be damaged from moderate heat or caustic conditions. Being all steel, they cannot be broken. (Distributed IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
SA-PVS9-360 9"
  • $132.00
  • $125.00
  • $118.80
  • $112.00
SA-PVS12-360 12"
  • $157.00
  • $150.00
  • $141.80
  • $134.00
SA-PVS18-360 18"
  • $202.50
  • $192.00
  • $182.30
  • $172.00
7) Insidee Use - TWO-WAY TRANSPARENT DOME MIRRORS (sometimes called ONE-WAY) for General Use
  • Unfortunately transparent (two-way) items are no longer available. Our US source for the glazing was sold and the new company does not provide this service. We are looking for another source but until one is found, we must remove this product.
Stainless steel mirror See Through Two-Way Full Dome Mirror Lens. Can be used to hide a camera or to create interesting art projects.
  • Inside second surface Mirror coating.
  • Can also be used as a concave mirror. (Note: The focal point may vary as much as 1 to 3 inches between mirrors.)
  • Made from 1/8" mirror-grade acrylic.
