90° Quarter Dome Safety Mirrors
Quarter Dome Mirrors
90° Corner Mirror
Use 90° mirrors at two-way intersections
  • Blind Corners
  • L-interesections
  • Showroom and Store Surveillance
  • Accident Prevention
  • Store Theft Prevention
  • Available in Acrylic
  • Use the Steel Backed for applications where porous surfaces are prohibited.
  • Fully assembled with mounting bracket
  • Shatterproof (acrylic)

Inches to Centimeters Conversion Calculator

PRINTABLE PRODUCT CUT SHEET MODELS: RAVxxx

PRINTABLE PRODUCT CUT SHEET MODELS: ALHxxxxxx

PRINTABLE DOME INFORMATION

CLICK HERE FOR HELP WITH BEST SIZE AND STYLE

CORNER DOME LENS: Quarter dome mirrors are made to fit into a corner between two intersecting pathways. They have a 1/4" to 3/4" flange around the edge depending on the size of dome. There are slight variations in the round (convex) shape but generally they are the same. If you need exact specifications please contact sales and support.

Corner Dome Backing
1) Lens Only
No Backing - Less rigidity. For inside use only.
2) Foam Lined
No Backing - Lens is coated in foam for rigidity. For inside use only.
3) Hard-Board
Masonite Board - For inside or covered & protected outside use.
4) Galvanized Steel
Non-porous surface for high interior humidity applications.
5) Abs Plastic
Black plastic back. More rigidity than lens only. Non-Porous surface.

Corner Dome Mounts
1) Flange Mount
Fastened to the ceiling with screws through holes in the flange.
2) Drop Ceiling Clip Mount
Clips onto drop ceiling tile dividers.
3) Spring Mount
Springs hold mirror onto two hooks screwed into mounting surface.

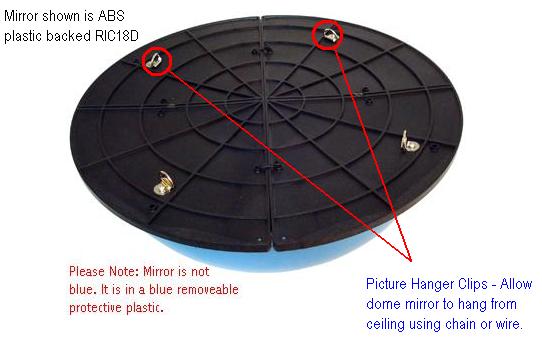

4) Chain/Wire Mount
Comes with Loops on edge of mirror that can screwed to a wall or used to attach chain or wire to suspend mirror.

Click here if you need help deciding which mirror to purchase? - Dome Safety Mirrors

1) Inside Use Only - Light Weight - NO Black Rubber Rim - Flange Mount Holes

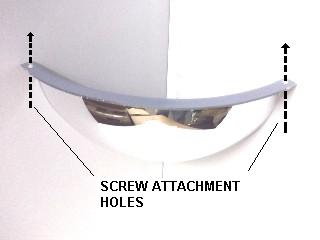

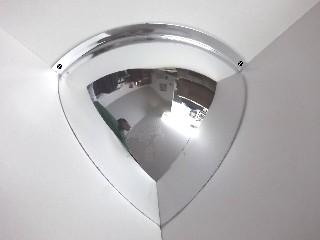

The picture on the right is of the 12" Quarter Dome Acrylic Flange mounted mirror. This mirror is fastened to a ceiling through the two holes on the flange. Front of installed corner dome TOP VIEW of the Lens Only Quarter Dome. The picture to your left illustrates where the mounting holes are located.
---- 1 PIECE Acrylic 90 degree view dome Flange Mounted Mirror ----
The flange mounted quarter domes are very light and easy to install. The lens is shatterproof acrylic with excellent reflective properties. This mirror is a good choice where there are finished ceilings and you want the mirror to be against the ceiling and tightly in the corner. ( MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
RP-AV12QL 6
  • $18.50
  • $18.00
  • $16.70
  • $16.00
RP-AV18QL 9
  • $29.00
  • $28.00
  • $26.10
  • $25.00
RP-AV26QL 13
  • $47.00
  • $45.00
  • $42.30
  • $40.00
RP-AV32QL 16
  • $62.00
  • $59.00
  • $55.80
  • $53.00
RP-AV36QL 18
  • $77.00
  • $73.00
  • $69.30
  • $65.00
2) Inside Use Only - Light Weight - Foam Lined for Added Strength - Black Rubber Rim - Drop Ceiling Clip-On Mount
The picture on the right is of the 12" Quarter Dome Acrylic Drop Ceiling mounted mirror. The clips (one on each side) are pressed onto the steel channel running along the wall. Back of foam lined mirror
---- Drop-Ceiling Mounted 90 degree view dome Mirror ----
The Mirror is mounted by pressing the clips (seen in the picture) onto the steel boarder edge rail running along the wall in a typical Drop-Ceiling installation. Made of Shatterproof Acrylic with a Black rubber rim around the flange. ( MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
AL-H141185F 9
  • $41.00
  • $39.00
  • $36.90
  • $35.00
AL-H141245F 12
  • $42.00
  • $40.00
  • $37.80
  • $36.00
AL-H141265F 13
  • $43.00
  • $41.00
  • $38.70
  • $37.00
AL-H141305F 15
  • $51.00
  • $48.00
  • $45.90
  • $43.00
AL-H141365F 18
  • $68.00
  • $65.00
  • $61.20
  • $58.00
3) Inside Use Only - Light Weight - Foam Lined for Added Strength - White Rubber Rim - Spring Mounted
Front Spring Mount Quarter Dome Mirror. Front of installed corner dome Top view of installed corner dome Pictured to your left is a Picture of the Spring Mount.
---- Spring Attached, 90 degree view, Quarter Dome Mirror ----
The Mirror is mounted by screwing the holding hook into the wall where the dome is to be placed. (seen in the picture) Attached the spring to the hook and allow the spring to pull the mirror against the wall. Made of Shatterproof Acrylic with a white boarder tape around the flange. (Assembled in the USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
SA-PV18-90 9
  • $25.50
  • $24.00
  • $23.00
  • $22.00
SA-PV26-90 13
  • $39.00
  • $37.00
  • $35.10
  • $33.00
SA-PV32-90 16
  • $49.50
  • $47.00
  • $44.60
  • $42.00
SA-PV36-90 18
  • $61.50
  • $58.00
  • $55.40
  • $52.00
SA-PV48-90 24
  • $93.00
  • $88.00
  • $83.70
  • $79.00
4) Inside Use Only - SCRATCH RESISTANT COATING - Light Weight - Foam Lined for Added Strength - White Rubber Rim - Spring Mount
---- SCRATCH RESISTANT COATING - Spring Attached - 90 degree view Quarter Dome Mirror ----
The "SCRATCH RESISTANT" Coated Dome mirrors look the same as the above Spring Mounted Domes. (See Pictures above.) The difference is that a special coating is applied to the mirror, which adds a hard surface over the otherwise softer acrylic. Please note that the coating creates a harder surface than the acrylic but it can still be scratched. Because dome mirrors are normally places in locations where they are rarely touched or bumped into, the issue of being scratched is typically not a big concern. However, if the mirrors are often cleaned or dusted, I would recommend getting the Hard Coated mirror lens to reduce the chance of being scratched. (Assembled in the USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
SA-PV18-90CT 9
  • $37.50
  • $36.00
  • $33.80
  • $32.00
SA-PV26-90CT 13
  • $55.50
  • $53.00
  • $50.00
  • $47.00
SA-PV32-90CT 16
  • $72.00
  • $68.00
  • $64.80
  • $61.00
SA-PV36-90CT 18
  • $61.50
  • $58.00
  • $55.40
  • $52.00
SA-PV48-90CT 24
  • $135.00
  • $128.00
  • $121.50
  • $115.00
5) Inside Use Only - Hardboard Backing for Rigidity - Black Rubber Rim - Wall Hanging Brackets

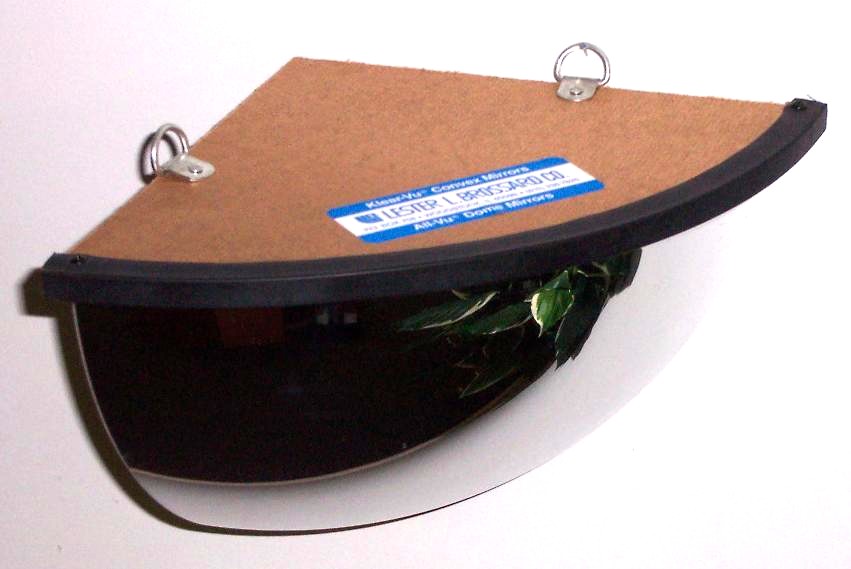

Top-side View of the "Hardboard Back" Corner Dome Mirror. Top view of hardboard backed mirror
---- ACRYLIC, Hardboard Backed Quarter Dome Mirror ----
The Hardboard Backing provides strength the mirror and with the two "D" loop hanging brackets, it is easy to attach into a corner. The hardboard backed mirror works best for those situations where there is no ceiling to attach against. It can also be placed at any height at intersecting wall. The Mirror is mounted by two screws. You can hang the mirror on the screws much like you would a picture or by using washers on the screws, it can be securely more attached to the wall. (MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
RP-AV12Q 6
  • $23.00
  • $22.00
  • $20.70
  • $20.00
RP-AV18Q 9
  • $36.00
  • $34.00
  • $32.40
  • $311.00
RP-AV26Q 13
  • $60.00
  • $57.00
  • $54.00
  • $51.00
RP-AV32Q 16
  • $79.00
  • $75.00
  • $71.10
  • $67.00
6) Indoor/Outside Use - Galvanized Steel Back for Strength - Non-porous Backing - Black Rubber Rim - Wall Hanging Brackets
Specification sheet for steel back mirrors. steel backed mirror spec sheet
---- Galvanized Steel Backed, 90 degree view, Quarter Dome Mirror ----
The Galvanized Steel Back Corner Dome Mirror looks the same as the above pictured Hardboard Backed mirror only with a STEEL BACK replacing the above brown hardboard back. (MADE IN THE USA)

Item Code Size Price Each
  • 1
  • 5
  • 10
  • 15
 Add to Cart
RP-AV18QS
  • $0.00
RP-AV26QS 13
  • $68.00
  • $65.00
  • $61.20
  • $58.00
RP-AV32QS
  • $0.00
RP-AV36QS 18
  • $113.00
  • $107.00
  • $101.70
  • $96.00
checkout
